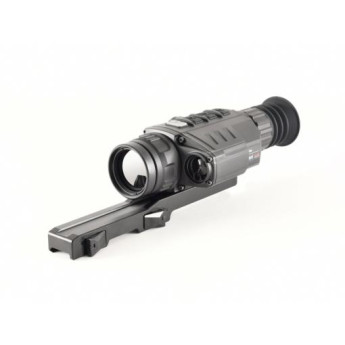

The RICO G-LRF is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics (RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable al...
The RICO G-LRF is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics (RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable alternative to it’s full size RICO Mk1 counterpart the RICO G-LRF is available in two models; 384x288 35mm and 640x512 50mm.
Although smaller in size the RICO G-LRF still maintains many familiar RICO Mk1 characteristics including a 4 button layout compatibility with the AD-RQD quick release mount similar software style and menu functions high speed germanium objective optics and an HD OLED display. In addition to the features it carries over from the Mk1 the G-LRF brings never-before-seen features to market for InfiRay Outdoor including a new high density 26650 battery configuration and InfiRay Outdoor’s newly integrated high performance 905nm LRF micro-module. This advanced class 3R LRF module uses the latest technology in laser ranging to decrease physical laser input receiver size while maintaining accuracy and range capabilities of modules that are much larger heavier and more power hungry.
Other notable design characteristics to achieve the desired smaller stature are a smaller chassis shorter eyepiece focal length barrel-style manual focus objective optics and a high density battery configuration. All these features combined make the RICO G-LRF an excellent option for hunters that need no more than 4(GH50R) or 7(GL35R) hours per battery swap and require decreased size and a integrated rangefinder. A single 26650 battery was chosen to power the system as a space saving and high value alternative to multi battery designs. 26650 style batteries are commercial off the shelf and widely available across the globe from premium battery manufactures such as NITECORE.
The RICO G-Series LRF seamlessly blends InfiRay Outdoor’s industry-leading 12μm detector technology a built-in laser range-finding module and an intuitive user interface in a single product. The G-Series LRF also supports image and video capture wireless data transmission electronic compass multiple reticles and a 4-7 hour run-time guaranteeing it’s never been easier to detect range and connect on your next hunt.
| Battery Count | 1 |
| Battery Run Time | 7 hr |
| Battery Type | 26650 Rechargeable |
| Brand | InfiRay |
| Brand Family | RICO |
| CA Prop 65 | Yes |
| Condition | New |
| Country of Origin | China |
| Material | Polymer |
| Optics Activation Modes | <10 Seconds - Instant from Standby |
| Optics App Support | Yes |
| Optics Class | Thermal Imaging |
| Optics Mounting System | M1913 Picatinny |
| Optics Objective | 35 |
| Optics Type | Thermal Laser Rangefinding Rifle Scope |
| Thermal Caliber Rating | 300 Win Mag |
| Thermal Core | InfiRay MICRO II |
| Thermal Digital Zoom | 4x |
| Thermal Diopter Adj | -4/+4 |
| Thermal Display / Monitor Type | OLED |
| Thermal Display Resolution | 1024 x 768 |
| Thermal Eye Relief | 40mm |
| Thermal FOV Deg | 7.5° × 5.7° |
| Thermal Human Detect Range | 1750 yds |
| Thermal Imaging Palettes | 4 Color |
| Thermal Magnification | 3x (Optical) |
| Thermal NETD | <40 mk |
| Thermal Objective Lens (Focal Length) | 35mm F/1.0 |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External |
| Thermal Rangefinder | Laser |
| Thermal Recording Type | On-Board Video and Photo |
| Thermal Reticle | 8 |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 384 x 288 |
| Thermal Standby Mode | Yes |
| Thermal Storage | 32 GB |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
