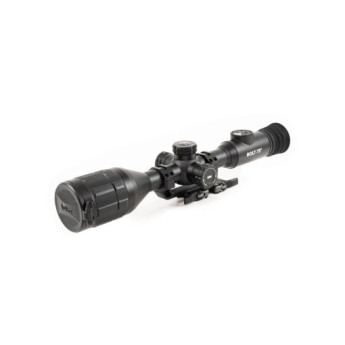

InfiRay BOLT TX60C Thermal Weapon Sight 1024x1024 60mm Incl/ QD Scope Mount
The InfiRay BOLT TX60C provides hunters with a high-resolution 1024x1024 InfiRay Micro II thermal sensor at a native 3x magnification and digital zoom up to 16x ideal for predator hunting and longer-range shots.
Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens a sensitivity rating of ≤18mK and a round 2560×2560 AMOLED display provide exceptional detail and precision.
The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings.
Wirelessly paired with the ILR-1200-1 Laser Rangefinding module the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.
The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope or share one thermal on multiple rifles.
Specifications
| Battery Count | 1 |
|---|---|
| Battery Run Time | 8 hr |
| Battery Type | 18650 |
| Brand | InfiRay |
| Brand Family | Bolt |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | China |
| Material | Aluminum |
| Microphone | Yes |
| Optics App Support | InfiRay Outdoor |
| Optics Class | Thermal Imaging |
| Optics Finish | Black Anodized |
| Optics Length | 15.12" |
| Optics Objective | 60 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Rifle Scope |
| Thermal Bluetooth | Yes |
| Thermal Boresight Adj | Digital Controlled |
| Thermal Detector Type | 12um Uncooled 50 Hz |
| Thermal Digital Zoom | 4x (Stepped) |
| Thermal Display / Monitor Type | AMOLED |
| Thermal Display Resolution | 2560 x 2560 |
| Thermal Eye Relief | 50mm |
| Thermal Human Detect Range | 2700 yds |
| Thermal Imaging Palettes | White Black Red Hot Color Violet Crimson Viridian |
| Thermal Magnification | 4x |
| Thermal NETD | <18mK |
| Thermal Objective Lens (Focal Length) | 60mm |
| Thermal Operating Temperature | -4°F to 122°F |
| Thermal Optics Wi-Fi | No |
| Thermal Power Supply | USB-C External |
| Thermal Rangefinder | Bluetooth ILR-1200-1 LRF (Optional) |
| Thermal Recording Type | On-Board Video and Audio |
| Thermal Reticle | 7 (1 Dynamic 5 Static 1 DIY) |
| Thermal Sensor Resolution | 1024 x 1024 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | 128 GB |
| Warranty | Mfg 5 Year Limited |
| Waterproof | IP67 |
| Weight | 35.3 oz |
