The InfiRay AFFO AP09 is a handheld thermal imaging monocular that is designed for hunting. It has a compact size a fashionable appearance and a clear field of view. The AP09 has a reso...

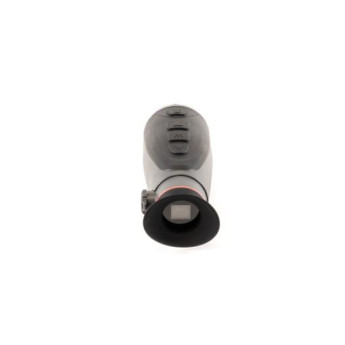

The InfiRay AFFO AP09 is a handheld thermal imaging monocular that is designed for hunting. It has a compact size a fashionable appearance and a clear field of view. The AP09 has a resolution of 256 × 192 a pixel pitch of 12 and a NETD of ≤40 mK. It also has a maximum 2x digital zoom an HDMI interface and a 2-in-1 neck strap and wrist strap accessory.
The InfiRay Outdoor AFFO series is an affordable and compact thermal imager designed for easy one-handed operation. This highly versatile imager is rugged yet lightweight making it ideal for many applications such as law enforcement hunting search and rescue and security.
Powered by a high-performance 12µm sensor the AFFO series uses next-generation Reality+ image processing to provide a crisp clear viewing experience that outperforms comparable economy imagers. The user-friendly interface has a built-in stadiametric rangefinder picture-in-picture function hotspot tracking internal recording and a 9+ hour run-time.
| Brand | InfiRay |
| Brand Family | AFFO |
| CA Prop 65 | Yes |
| Condition | New |
| Country of Origin | China |
| Material | Polymer/Rubber |
| Optics App Support | InfiRay Outdoor |
| Optics Length | 6.29" |
| Optics Mounting System | 1/4-20 |
| Optics Objective | 13 |
| Optics Type | Thermal Monocular |
| Thermal Digital Zoom | 4x (Stepped) |
| Thermal Diopter Adj | -7/+2 |
| Thermal Display / Monitor Type | AMOLED |
| Thermal Display Resolution | 600 x 400 |
| Thermal Eye Relief | 20mm |
| Thermal Human Detect Range | 670 yds |
| Thermal Imaging Palettes | White Black Red Hot Color HIghlight |
| Thermal Magnification | 2x (optical) |
| Thermal NETD | <40 mk |
| Thermal Objective Lens (Focal Length) | 13mm |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External / Built-In Battery Pack |
| Thermal Recording Type | On-board Video |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 256 x 192 |
| Thermal Storage | Built-in memory module (8 GB) |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 12 oz |
